De acero inoxidable del acoplamiento de alambre

Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer

Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer

Nombre De La Marca:	Comesh
Número De Modelo:	COCHE-0025
Cuota De Producción:	100 piezas
Precio:	Negociable
Condiciones De Pago:	T/T, Unión Occidental,
Capacidad De Suministro:	800 rollos por meses

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

SGS

Nombre:

Disco de filtros de extrusión de plástico de malla de alambre de acero inoxidable de tejido holandés

Material:

Acero inoxidable 201, 304,316L

Diámetro:

5cm, 10cm, 12cm

Malla:

Malla 72/15,152/30,152/24,260/40

Características:

De alta calidad, durabilidad, robustez

Solicitud:

Máquina de dibujo de alambre de plástico, máquina de película de fundición y máquina de recubrimient

tipo:

Pantalla de malla, disco de filtro de malla

Uso:

Filtración de masa fundida en la industria del plástico.

muestra:

Muestra disponible y gratuita

Detalles de empaquetado:

El interior del papel de Kraft, plywooden el caso afuera

Resaltar:

Reverse Dutch weave stainless steel mesh

Stainless steel wire mesh extrusion filter

Plastic pelletizer wire mesh screen

Descripción del producto

Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer

48 × 10 mesh (400 nominal microns)

72 × 15 mesh (250 nominal microns)

132 × 17 mesh (170 nominal microns)

152 × 24 mesh (160 nominal microns)

260 × 40 mesh (55 nominal microns)

Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer Advantages:

plastic extruder filters are resistant to acids, alkalis, corrosion, and high temperatures.

plastic extruder filter mesh has more efficient extruder screening and better filtration performance.

extruder filter screens has Wide range of mesh sizes for different filtration requirements and grades.

mesh belt for screen changer isSuitable for various automatic screen changers.

Uninterrupted replacement for efficient production.

Applications of Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer

Continuous belt screens are widely used in various screen changers to filter impurities from polymer extrusion processes without interrupting the process.

plastic extrusion filters are primarily used for filtering cast and blown films, composites, resin production, nonwovens, and specialty materials.

plastic extruder black wire mesh filter is widely used in the plastics industry for plastic extrusion and melt filtration, in continuous belt screen changers for PP, PS, PVC, PET, PE, ABS, and PMMA.

Description:

Name	201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer
Width	10cm,12cm,12.7cm,15cm,20cm
Mesh	260/40mesh,72/15mesh,152/30mesh,152/24mesh
Weave style	Reverse Dutch Weave
Keywords	Automatic Band Filter Screen Belt/ Reverse Dutch Weave mesh belt

Application:

1. It is suitable for the filtration of plastic wire drawing machine, casting film machine and film coating machine, such as
plastic woven bag, plastic film and so on.
2. In acid, alkali environment conditions sieving and filtering.
3. Petroleum industry as mud mesh.
4. Chemical fiber industry as screen mesh.

5. Plating industry as acid cleaning mesh.
6. Widely used in aerospace, cachinery, plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.

Mesh	Wire Diameter (mm)	Thickness (mm)	Width (cm)
45x15	0.45x0.6	1.75	8-85
72x15	0.45x0.55	1.7	8-85
120x16	0.35x0.45	1.36	8-85
132x17	0.3x0.45	1.3	8-85
152x24	0.3x0.40	1.2	8-85
160x18	0.28x0.45	1.27	8-85
200x40	0.15x0.27	0.7	8-130
260x40	0.15 x0.27	0.65	8-130
300x40	0.15 x0.27	0.65	8-130
360x40	0.13 x0.27	0.6	8-130
Special specification we can produce according to customer's requirements

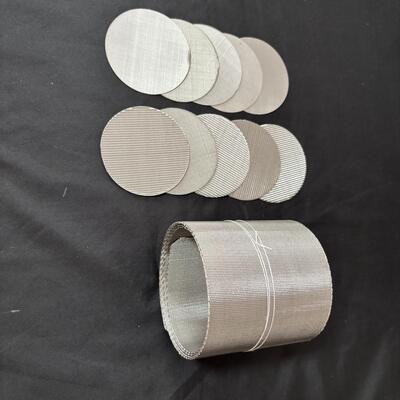

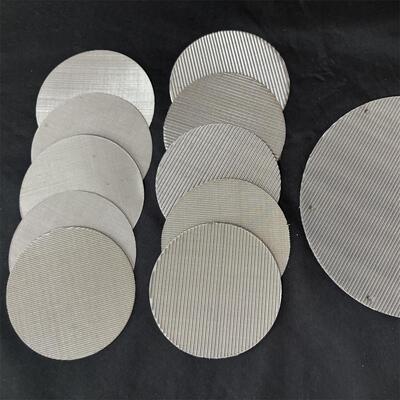

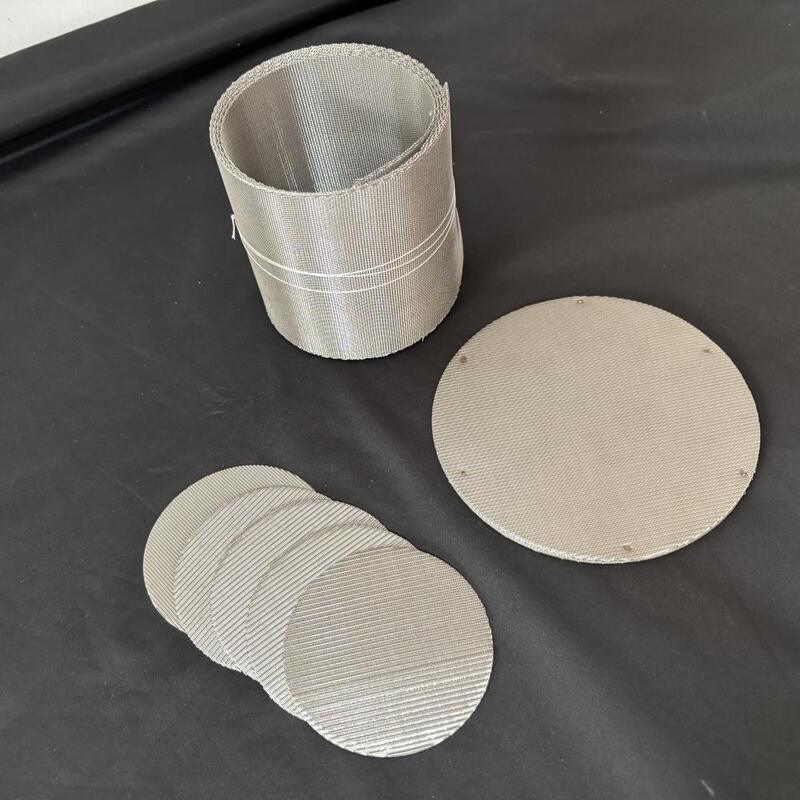

Products show:

Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer 0

Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer 1

Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer 2

Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer 3

Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer 4

Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer 5

Reverse Dutch Weave Stainless Steel Wire Mesh Screen Plastic Extrusion Filters Disc for Plastic Pelletizer 6
